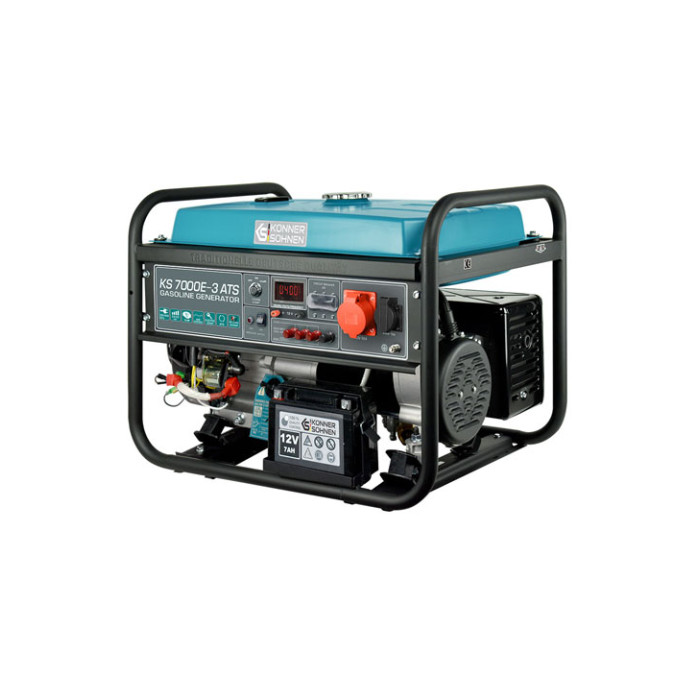

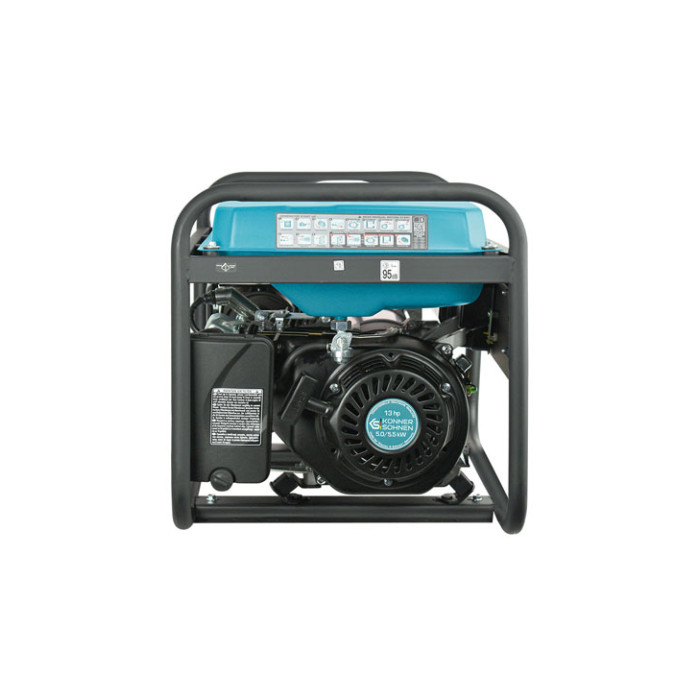

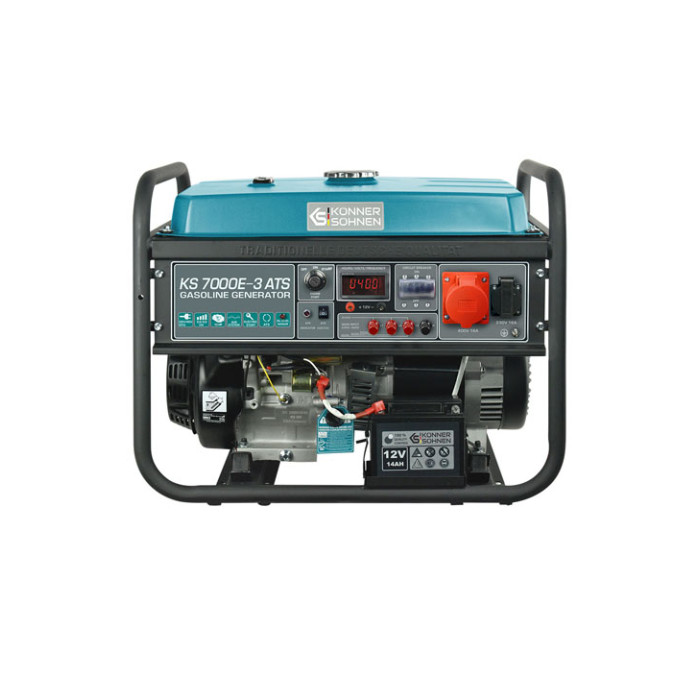

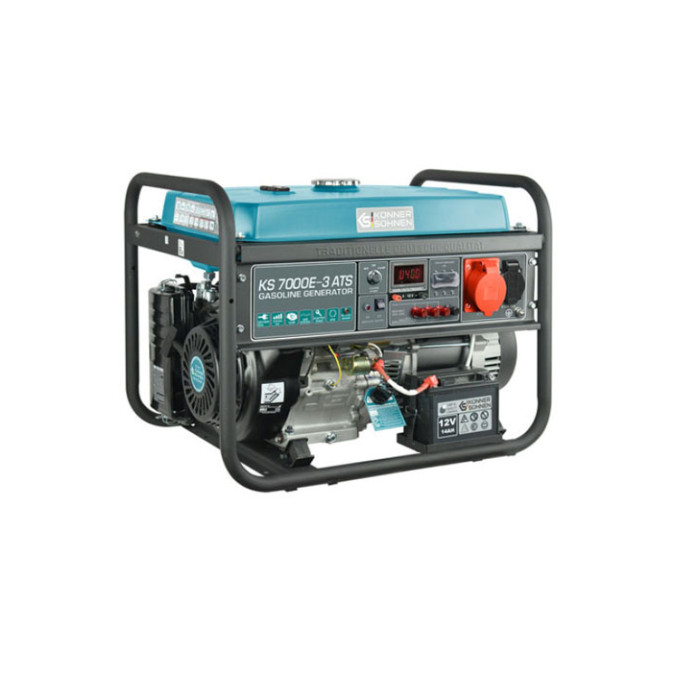

Gasoline generator 5500W, KS 7000E-3 ATS, KÖNNER & SÖHNEN

Product Code: KS-7000E-3-ATS
Barcode 4260405361632

You must login or create an account to be able to add the product to the cart!

Specification

Automatic starting unit: Integrated
Fuel tank capacity, l: 25
Maximum power, W: 5500
Nominal power, W: 5000
Starter: Manual/electric/automatic
Voltage, V: 400

Description

Introducing the KÖNNER & SÖHNEN KS 7000E-3 ATS petrol generator - developed by skilled German engineers who have carefully designed and tested the reliability of these engines.
The KS 7000E-3 ATS generator has a unique built-in ATS unit that monitors the mains power supply and automatically switches on in the event of a power failure and off when power is restored. It's a useful feature for buildings with strict temperature or lighting control.
Quality is of utmost importance at Könner & Söhnen. The engines comply with all global and European standards, including EURO V, as evidenced by European quality certificates. Each engine and generator has its unique serial number, allowing for quality control in production and service.
The easy start system lets you start the engine with minimal effort. This generator has two start options: manual and electric.
Könner & Söhnen alternators feature a top-of-the-range synchronous generator with 100% copper winding for heavy-duty durability and long-term reliability.
The generator can be easily controlled via an ergonomic control panel with a modern LED display showing the number of hours, frequency, and voltage. Additional features include an electric start, emergency switch, low oil level sensor, and more, all positioned for ease of use.
Könner & Söhnen generators have an extended steel fuel tank that allows for a longer lifespan without refueling. A fuel level indicator is placed on the tank for easy monitoring.
All Könner & Söhnen generator models are equipped with rubber feet to reduce vibration, protect your floors, and ensure that they are not scratched.

Use the three-phase generator only for three-phase (400 V) connections!


Technical specification



Engine typeGasoline powered one-cylinder, four-stroke air-cooled
Fuel typeGasoline
Engine modelKS 390
Engine power hp/kW,13.0/9.56
Max power kW, 5.5
Nominal power kW, 5.0
Voltage, V400
Frequency, Hz50
Current (max), А9.93
Outlets2
Fuel tank volume, l25
Avg. working time (power 50%), h                                                17
LED displayVoltage, frequency, working hours
Noise level Lpa (7m)/Lwa, dB70/95
Power output DC, V/А12/8.3
Engine startManual/electric/auto
Crank case volume, l1.1
Engine cylinder volume, cm3389
Power output controllerIntelligent voltage stabilization system AVR
Alternator windingCopper
Net dimensions (LxWxH), mm680x545x550
Net weight, kg82.3
Protection classIP23M
