Gasoline generator 12500W, KS 15-1E ATSR, KÖNNER & SÖHNEN

Gasoline generator 12500W, KS 15-1E ATSR, KÖNNER & SÖHNEN

Product Code: KS-15-1E-ATSR
Barcode 4260405363438
You must login or create an account to be able to add the product to the cart!
Specification
Description
Related products

Specification

Automatic starting unit: Connectable
Fuel tank capacity, l: 55
Maximum power, W: 12500
Nominal power, W: 12000
Starter: Electric
Voltage, V: 230

Description

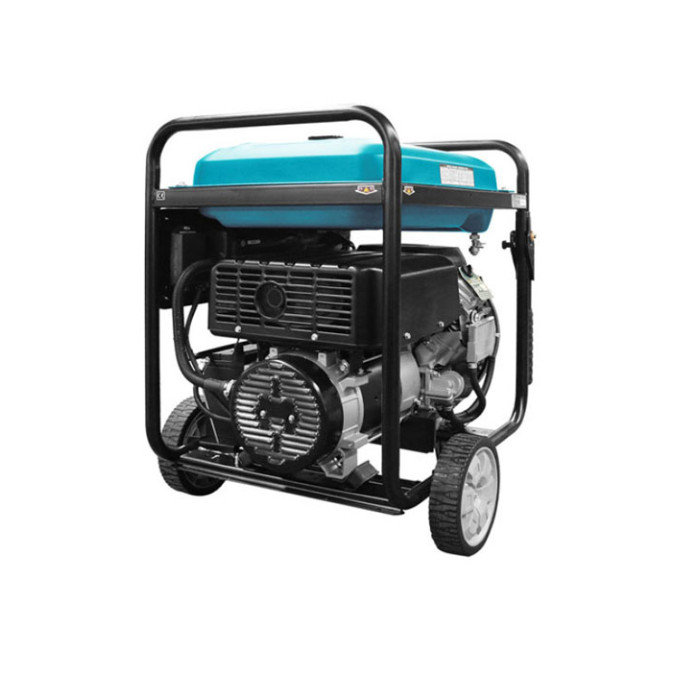

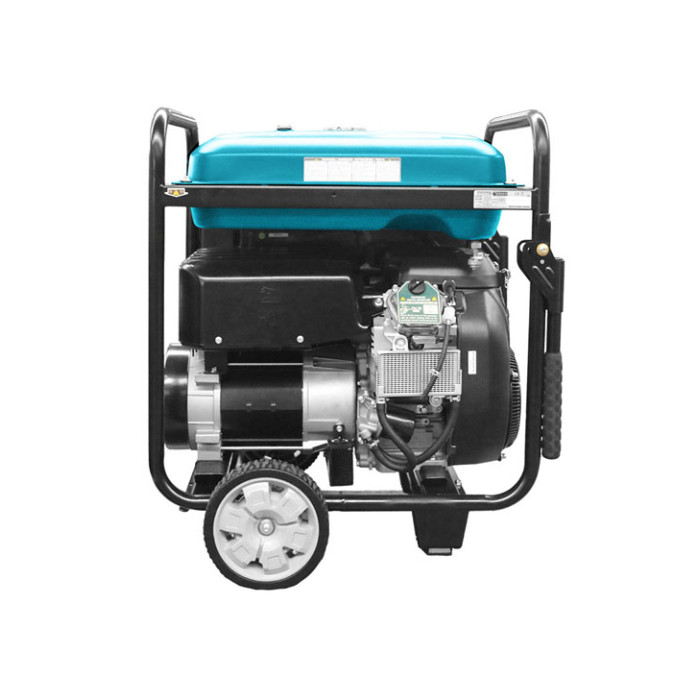

The KÖNNER & SÖHNEN KS 15-1E ATSR petrol generator is a high-performance model equipped with a Könner & Söhnen robust 22 hp two-cylinder engine. The engine meets all European quality standards, including the latest EURO 5 emission standards. This generator is ideal for connection to an ATS (automatic transfer switch). It has a user-friendly ergonomic control panel with an engine emergency stop button and a multi-function LED display that allows you to monitor its operation, including voltage, frequency, operating hours, and oil level. The generator is also equipped with sockets to ensure complete de-energization, with fuses and suitable plugs. Thanks to the large 55 l fuel tank, you can enjoy long and continuous operation.

Technical specification

Engine Type                                                          Gasoline powered two-cylinder, four-stroke air-cooled
Fuel TypeGasoline
Engine ModelKS 780
Engine Power (hp/kW)22.0 / 16.18
Max Power (400V) kVA12.5
Nominal Power(400V) kVA12.0
Voltage (V)230
Frequency (Hz)50
Max Current (A)53
Outlets1 x Schuko 230 V, 1 x CEE 230 V 32 A, 1 x CEE 230 V 63 A
Fuel Tank Volume (l)55
Accumulator (A·h)36
Noise Level Lpa (7m) / Lwa (dB)72 / 97
Crank Case Volume (l)1.5
Engine Cylinder Volume (cm³)750
Alternator WindingCopper
Power Output ControllerIntelligent voltage stabilization system AVR
Engine StartElectric
Power Output DC (V/A)+
LED DisplayVoltage, frequency, working hours, oil alarm
Weight (kg)155
Dimensions (LxWxH, mm)797×705×805
Protection ClassIP23M
